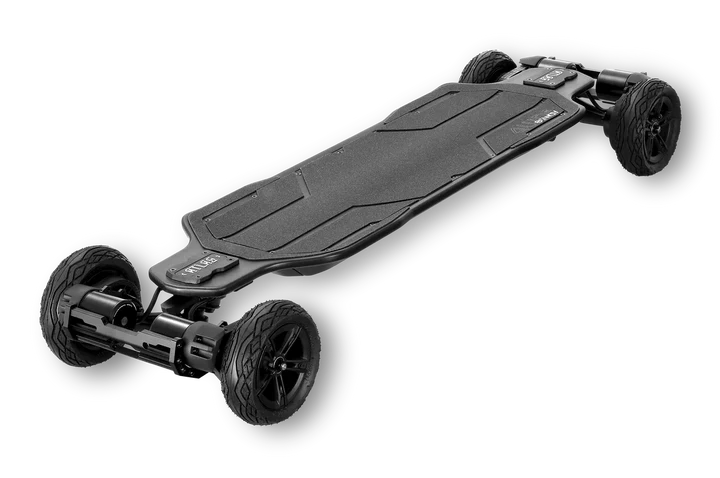

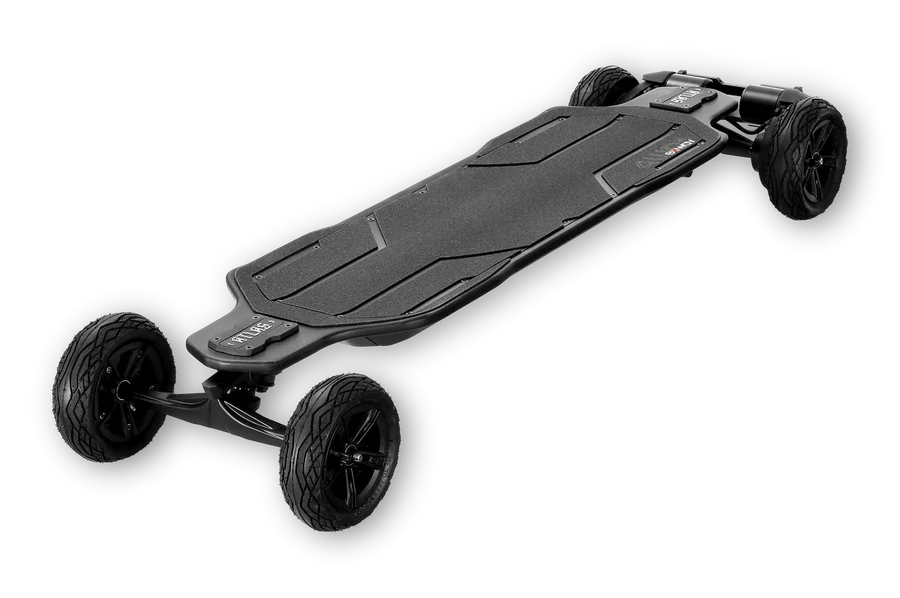

Exway Atlas Electric Skateboard

12S SMART AND MODULAR BATTERY SYSTEM

Carbon fiber housing shields the cells and electronics from the environment. Designed to be user-replaceable.

ALL THE POWER YOU NEED

Exway’s power ratings are based on the entire systems’ capabilities, free of cherry picked stats considered on their own.

CARBON FIBER UNIBODY

Sleek and stealthy with the delicate electronics embedded within the high-strength carbon deck.

SPECIFICATIONS

• Max Speed: 31 mph / 50 km/h
• Levels Assist: 1,2,3,4 with Adjustable Acceleration strength
• Braking: FOC Regenerative Braking & Adjustable Braking strength
• Range: Up to 18.6 miles (30 km) (AUXPack can be installed to reach 59 miles / 95 km range)
• Total Weight Limit: 300 lbs / 136 kg
• Ideal Use: All-Terrain
• Rider: Suitable for ages 15 and up
• Weight: 25 lbs / 11.5 kg
• Safety Certified: Complies with UL2272, CE standards
• Size (LxWxH): 119 x 31.2 x 16 cm / 46.9 x 12.2 x 6.2 inch
• Deck: Carbon Fiber
• Trucks: Trist 9.5″ DKP (Forging + CNC Precision Machined) (Replaceable RKP)
• Wheels: 160*50mm High quality rubber wheels (Compatible with wheels from 85-200mm)
• Hubs: High precision plastic hubs (Replaceable Aluminum CNC Hub)
• Motors: 3024W power rated 4240 Custom Brushless Sensored Motors (2 for 2WD / 4 for 4WD)
• Drive: Belt (BELT RATIO: 3.7)
• ESC: Custom 12S 50.4V ESC2.0 – 2.4G Wireless & Bluetooth
• Battery: :518Wh, 12S3P 50.4V 120A Smart BMS
• Battery Pack: AUX Pack can be installed
• Charger: 4A Charger (Compatible with 1050W Quick Charger)
• Charging Time: 3.3 hours (1050W Charger: 30 min)
• Remote: Smart Remote R2
• App Supported: Yes
• Mud Guards: Yes
